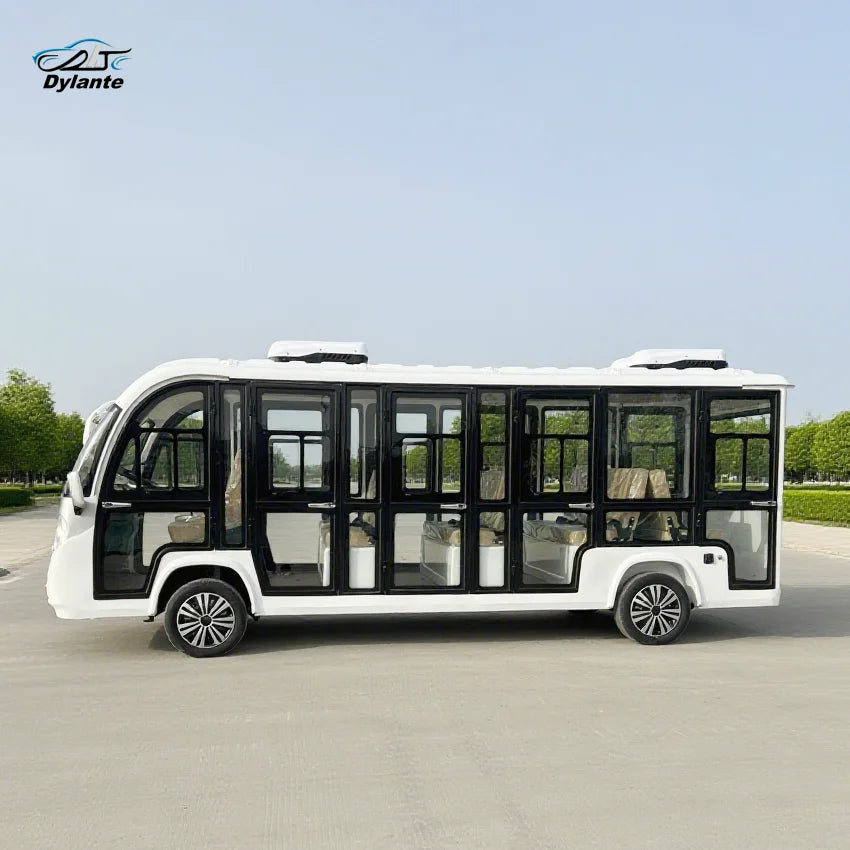

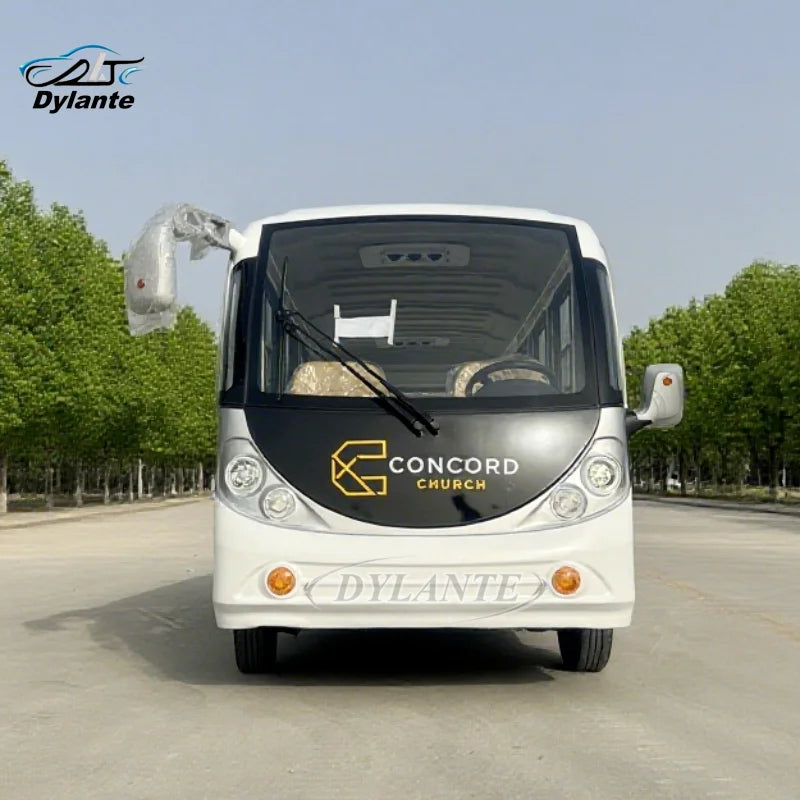

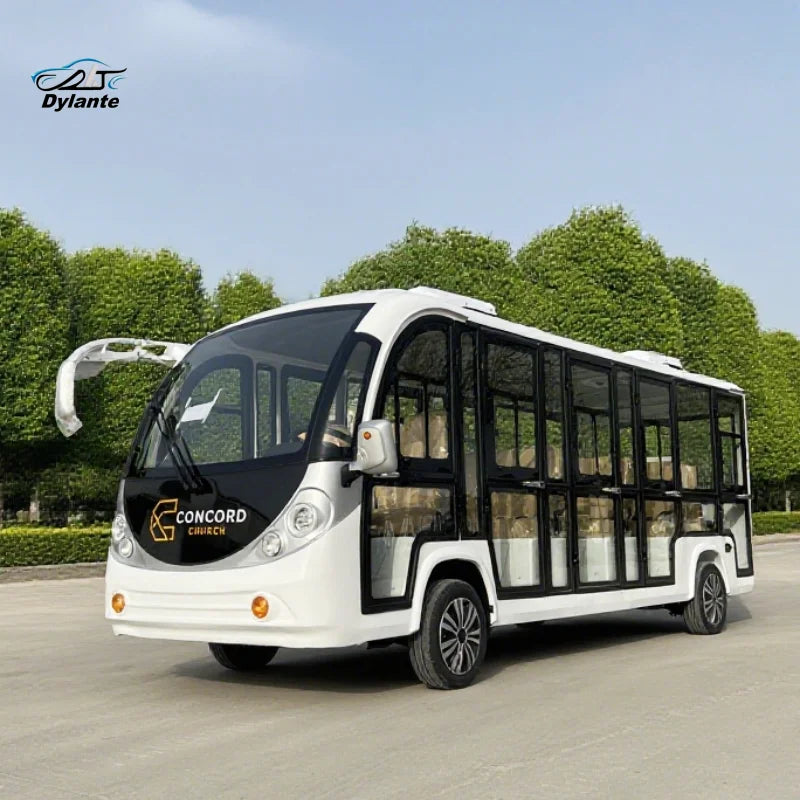

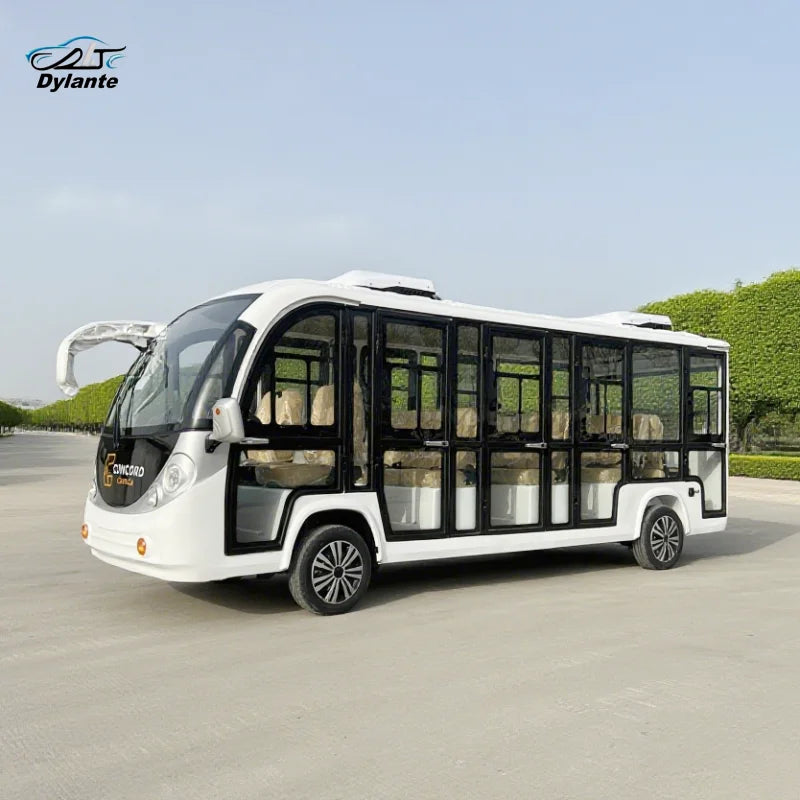

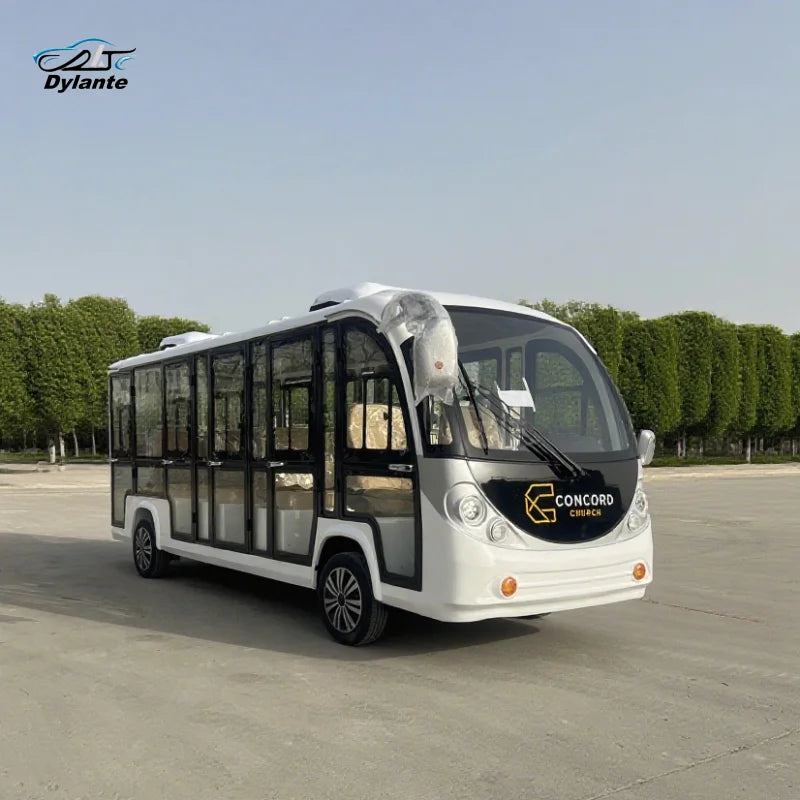

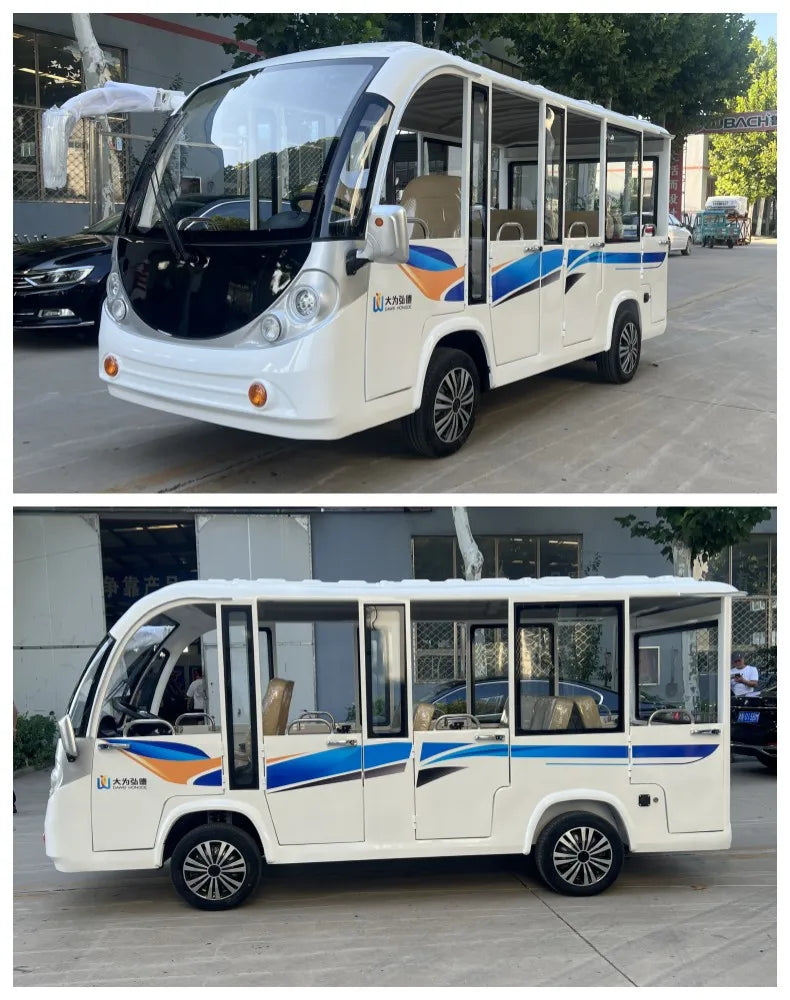

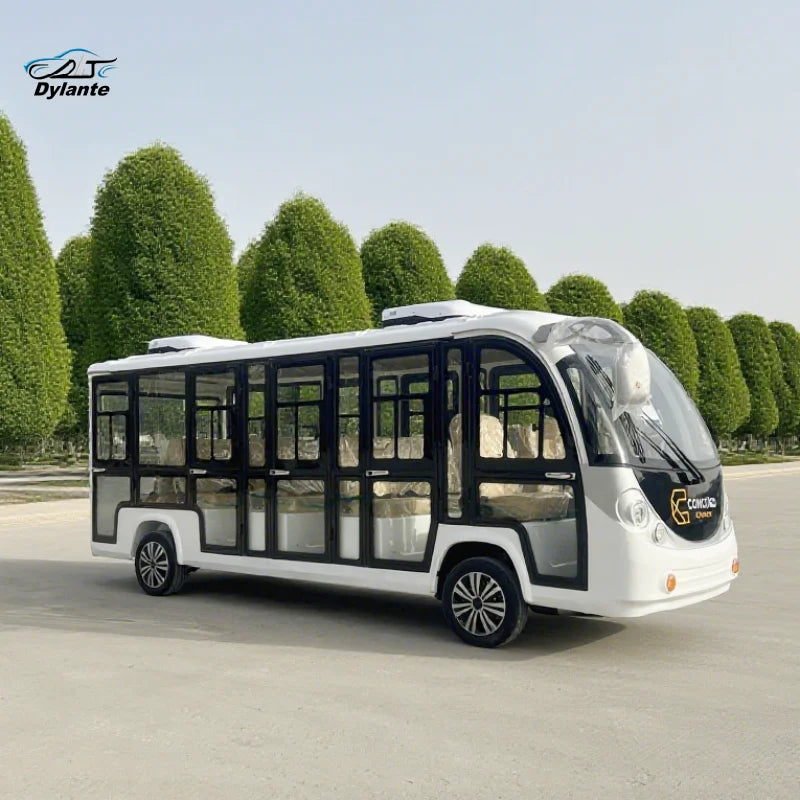

Electric Sightseeing Bus for Hotel Resorts 14-seater Sightseeing Vehicle with Comfortable Seats

$8,122.99 USD

~~$0.00 USD~~ $8,122.99 USD

Sale Sold out

Shipping calculated at checkout.

Color 4 Row 3 Row 2 Row Deposit

SPECIFICATIONS

Adult Golf Carts: Electric Sightseeing Bus

Battery Capacity(mAh): 90-110Ah

Battery Voltage: 48V

Brand Name: NoEnName_Null

Certification: ce

Charging Time: 8-10 Hours

Driving Mileage: ≥90km

Fuel Type: Electric

Hub size: Others

Max Speed: 30-40km/h

Motor Power: 4000w,5000w,7500w

Seating Capacity: 8,11,14

Seats: > 8

Sightseeing car: Electric Sightseeing Car

Speed Range: 40 km/h

Traveling Range: 80-100km

Wholesale 11 14 Seats Electric Mini Bus Four Wheels Electric City 5000W Sightseeing Car for Sale

Technical parameters
Model	Three rows of 8 seats	Four rows of 11 seats	Five rows of 14 seats
Curb weight (KG)	740	980	1060
Dimensions (mm)	420015101920	510015101920	575015101920
wheelbase(mm)	2670	3450	4230
Front wheelbase(mm)	1290	1290	1290
Rear whee1base (mm)	1280	1280	1280
Minimum ground clearance (mm)	290	290	290
Turning radius (m)	≤5.9	≤5.9	≤5.9
Maximum speed (km/h)	27	27	27
Gradeability	30%	30%	30%
Cruising range (km)	80-100	80-100	80-100
Braking distance (m)	≤3.5	≤3.5	≤3.5
Electrical System
Electronic control	Inbor	Charger	Vehicle-mounted intelligent charger
Battery	72v (6 Chaowei batteries)	charging time	8-10 hours
motor	4KW /5KW/7.5KW	Charging input voltage	220V/110V
Systems
seat	Seat (leather fabric + high resilience PU)
car body	Steel frame + metal shell/ABS molding
meter	LCD instrument display (including voltage, current, speed, mileage, lighting, front and rear commutation and other signals)
rearview mirror	Manual exterior mirrors
Lights and Signals	Headlights, turn signals, combined rear tail lights, brake lights, electric horns
sound	Car MP3 player, professional speakers. Reversing image
switches	Start switch, light and wiper combination switch, forward and backward gear switch
car frame	steel structure frame
steering wheel	Polyurethane foam steering wheel
undercarriage
Power Transmission System	Infinitely variable speed system
Steering System Front Axle	Rack and pinion steering gear
Front axle and suspension	MacPherson independent suspension
Rear axle and suspension	Integral full-body rear axle + high-strength leaf spring + cylinder hydraulic shock absorber
Braking System	Brake assist. Front disc brake, rear drum hydraulic brake, parking brake

Packing & Delivery

Company Profile

Product advantages

1. Adopt American golf cart standard design and production:

lightweight, energy-saving, mature and stable, reliable and safe;

2. The interior and exterior decoration of American golf cart:

exquisitely carved, environmentally friendly and comfortable, novel and beautiful;

3.Adopt new energy electric drive system:

high efficiency, strong climbing force, smooth and fine control, safe and controllable vehicle, low maintenance cost;

4. Adopt new energy AC electric control, with seven protection functions:

battery polarity reverse protection, connection error protection, thermal protection, external protection, out of control protection, over discharge protection, false start protection;

5. Use large capacity, long cycle, maintenance-free, deep cycle traction battery:

high energy, long life, high current discharge characteristics;

6. High frequency intelligent charger, 6 section charging:

full of automatic power off, charging short circuit protection, effectively protect the battery, prolong the service life of the battery, stable and durable, resistant to harsh use environment;

7. New energy vehicles on the vehicle testing line, through a variety of strict tests, the vehicle quality is stable and reliable.

FQA__________________________________________________________

How many kilometers can the electric car drive, what the driving speed?

A: The electric car adopt 60 V battery, can driving about 120km one time.

Driving speed is 30 km/h setting in the factory, but can adjusted at the range of 20-40 km/h according to the client requirement.

How to charging the electric car, if there are any notice during the charge?

A: Company will send on charger along with the electric car.

The power output should be Single phase 110V/220V, should charge 6-8 hours once the battery run out. The charging will be finish automatically once the battery is full.

How long for the warranty?

A: The whole electric car have 12 months warranty, company can offer replacement parts for free during the warranty.
